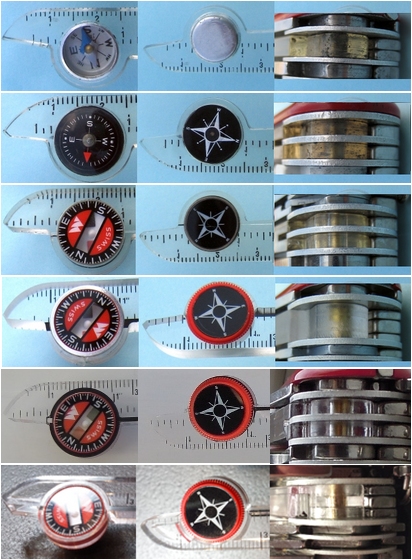

Orienteering tool and compass evolution: From top to bottom: Older to newer - Generations 1-6

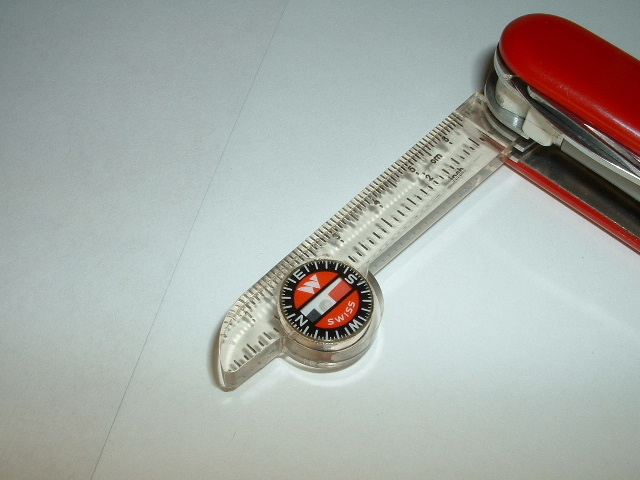

The Orienteering Tool (a.k.a. Ruler and Compass) is a Wenger exclusive tool introduced probably between 1985 and 1986.
This thick plastic tool includes a ruler and small button compass.  The ruler has gradations in centimeters and inches.
A basic tool to aid in map navigation and general direction finding.

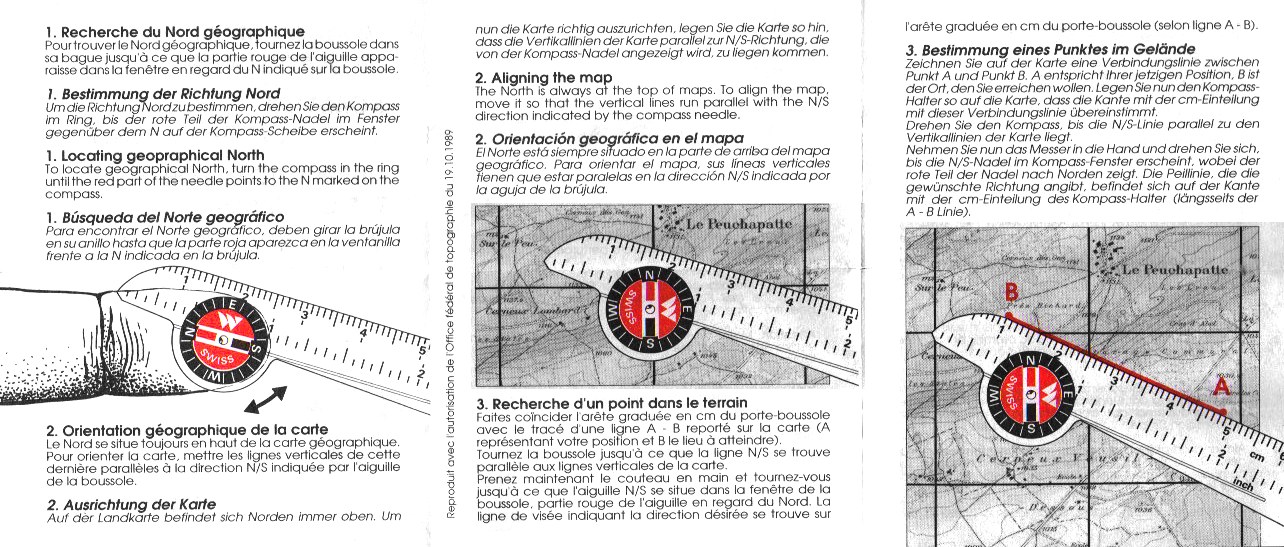

Compass Instruction Sheet - Front

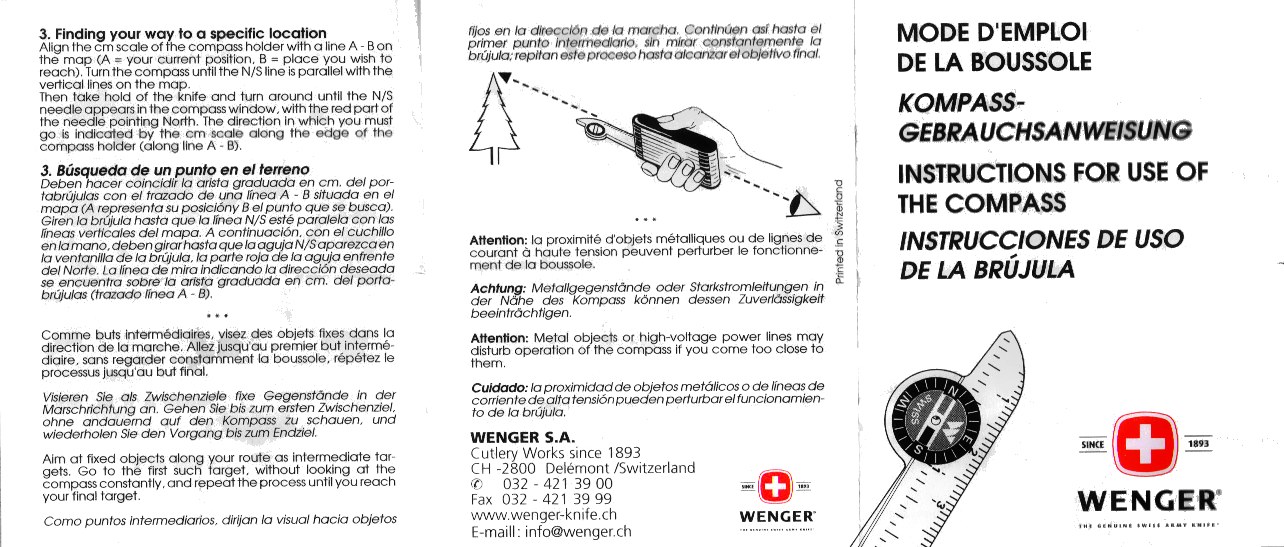

Compass Instruction Sheet - Back

Variations

The tool and the compass changed over the years. The first version of the tool was about 5mm in width, however, later versions were roughly twice as wide as a typical tool layer - See image.

Information about the tool production is scarce, however there were at least six variations:

1. First generation: With a metal compass. Probably produced between late 1985 or early 1986. The ruler is made of solid plastic, thinner than any other variant (rule is around 5mm in width); uses two layers and is not separated by a liner.


2. Second generation Uses a plastic compass with a black background. Probably produced from 1986 to 1990. The ruler is made of solid plastic; wider in size (around 8mm in width); uses two layers; and is separated by a liner


3. Third generation: Uses a plastic compass. Probably produced between 1991 and 1995. The ruler is made of solid plastic; wider in size (around 8mm in width); uses two layers and is separated by a liner.


4. Fourth generation: A plastic compass with a metal border on the front side and an orange ring on the back. Probably produced from 1996 to 2001. The ruler is made of solid plastic; wider in size (around 8mm in width); uses three layers and is not separated by a liner.


5. Fifth generation: A plastic compass with a black border on the front side and an orange ring on the back. Probably produced around 2002. The ruler is made of solid plastic; wider in size (around 8mm in width); uses two layers and is separated by a liner.


6. Sixth generation: A plastic compass with a clear border on the front side and an orange ring on the back. Probably produced around 2007. The ruler is made of hollow plastic; wider in size (around 8mm in width); uses three layers and is not separated by a liner.
